import numpy as np
import pandas as pd
import seaborn as sns
import matplotlib.pyplot as plt
import netCDF4 as nc
import xarray as xr
carbon_data = nc.Dataset("Files/dataset_satellite_data_carbon_dioxide.nc", 'r')
global_attributes = carbon_data.ncattrs()
print(global_attributes)
['activity_id', 'comment', 'contact', 'Conventions', 'creation_date', 'data_specs_version', 'frequency', 'further_info_url', 'grid', 'grid_label', 'institution', 'institute_id', 'license', 'nominal_resolution', 'product', 'realm', 'references', 'region', 'source', 'source_id', 'source_label', 'source_type', 'source_version_number', 'title', 'tracking_id', 'variable_id', 'variant_info', 'variant_label']
print(carbon_data.title)
C3S XCO2 v4.4
carbon_data = nc.Dataset("Files/dataset_satellite_data_carbon_dioxide.nc", 'r')
# Print variable names and their attributes
for var_name in carbon_data.variables:
print(f"Variable: {var_name}")
print("Attributes:")
for attr_name in carbon_data.variables[var_name].ncattrs():
print(f" {attr_name}: {getattr(carbon_data.variables[var_name], attr_name)}")
print()
Variable: time
Attributes:
standard_name: time
long_name: time
units: days since 1990-01-01
calendar: standard
axis: T
comment: time center
Variable: time_bnds
Attributes:
units: days since 1990-01-01
comment: time boundaries
Variable: lat
Attributes:
standard_name: latitude
long_name: latitude
units: degrees_north
axis: Y
comment: latitude center
Variable: lat_bnds
Attributes:
units: degrees_north
comment: latitude boundaries
Variable: lon
Attributes:
standard_name: longitude
long_name: longitude
units: degrees_east
axis: X
comment: longitude center
Variable: lon_bnds
Attributes:
units: degrees_east
comment: longitude boundaries
Variable: pre
Attributes:
standard_name: pressure
long_name: pressure
units: surface_pressure
axis: Z
comment: pressure center
Variable: pre_bnds
Attributes:
units: surface_pressure
comment: pressure boundaries
Variable: land_fraction
Attributes:
standard_name: land_area_fraction
long_name: land area fraction
units: 1
comment: Land area fraction computed from GTOPO30 data available from the U.S. Geological Survey
Variable: xco2
Attributes:
standard_name: dry_atmosphere_mole_fraction_of_carbon_dioxide
long_name: column-average dry-air mole fraction of atmospheric carbon dioxide
units: 1
cell_methods: time: mean
missing_value: 1e+20
fill_value: 1e+20
comment: Satellite retrieved column-average dry-air mole fraction of atmospheric carbon dioxide (XCO2)
Variable: xco2_nobs
Attributes:
units: 1
missing_value: 0
fill_value: 0
comment: Number of individual XCO2 L2 observations
Variable: xco2_stderr
Attributes:
units: 1
missing_value: 1e+20
fill_value: 1e+20
comment: Standard error of the average including single sounding noise and potential seasonal and regional biases
Variable: xco2_stddev
Attributes:
units: 1
missing_value: 1e+20
fill_value: 1e+20
comment: Standard deviation of XCO2 L2 observations
Variable: column_averaging_kernel
Attributes:
units: 1
missing_value: 1e+20
fill_value: 1e+20
comment: The normalized column-averaging kernel represents the sensitivity of the retrieved XCO2 to the atmospheric carbon dioxide mole fraction depending on pressure (height). All values represent layer averages within the corresponding pressure levels. Values near one are ideal and indicate that the influence of the a priori is minimal. Profiles are ordered from surface to top of atmosphere. See Product Specification Document Version 3 at www.esa-ghg-cci.org for more information.
Variable: vmr_profile_co2_apriori
Attributes:
units: 1
missing_value: 1e+20
fill_value: 1e+20
comment: A priori dry-air mole fraction profile of atmospheric carbon dioxide in ppm All values represent layer averages within the corresponding pressure levels. Profiles are ordered from surface to top of atmosphere. The a priori profile is needed to apply the XCO2 averaging kernel. See Product Specification Document Version 3 at www.esa-ghg-cci.org for more information.
# carbon_data
carbon_data['lat']
<class 'netCDF4._netCDF4.Variable'>
float64 lat(lat)
standard_name: latitude
long_name: latitude
units: degrees_north
axis: Y
comment: latitude center
unlimited dimensions:
current shape = (36,)
filling on, default _FillValue of 9.969209968386869e+36 used
carbon_test = xr.open_dataset("Files/dataset_satellite_data_carbon_dioxide.nc")
import cartopy.crs as ccrs
import ipywidgets as widgets
from IPython.display import display
from cartopy.mpl.gridliner import LONGITUDE_FORMATTER, LATITUDE_FORMATTER
#help(carbon_test.xco2)
#help(carbon_test.xco2.sel)
#help(sliced_data)
#help(slice)
import nc_time_axis
import cartopy.feature as cfeature
states = cfeature.NaturalEarthFeature(category = 'cultural',
name= 'admin_1_states_provinces_lines',
scale= '50m',
facecolor = 'none')
#help(ax)
# Approximate boundaries of Oregon's border
min_longitude = -125
max_longitude = -116
min_latitude = 41.5
max_latitude = 47
# Creates slice of carbon data to visualize within Oregon
sliced_data = carbon_test.xco2[10,:,:].sel(lat=slice(min_latitude, max_latitude),
lon=slice(min_longitude, max_longitude))

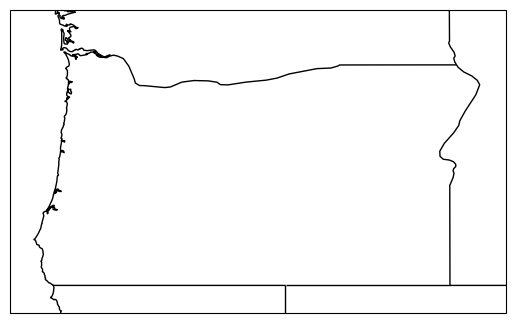

# Creates an axis with PlateCarree projection
ax = plt.axes(projection=ccrs.PlateCarree())
# Adds state boundary information to the axis
ax.add_feature(states, edgecolor='black')
# Adds coastlines to the axis
ax.coastlines()
# Sets the extent of the axis to the specified longitude and latitude range
ax.set_extent((min_longitude, max_longitude,
min_latitude, max_latitude), crs=ccrs.PlateCarree())
def plot_co2(time_index):
"""
Plots CO2 levels at the specified time index using a PlateCarree projection map.
Args:
time_index (int): The time index of the CO2 data to be plotted.
Returns:
None
"""
# Create a new figure
fig = plt.figure(figsize=(12,6))
# Create an axis with the PlateCarree projection
ax = plt.axes(projection=ccrs.PlateCarree())
# Set the extent of the plot to cover the entire globe
ax.set_extent((min_longitude, max_longitude,
min_latitude, max_latitude), crs=ccrs.PlateCarree())
ax.add_feature(states, edgecolor='black')
# Add coastlines to the plot
ax.coastlines()
# Plot the CO2 data with appropriate latitude and longitude coordinates
img = ax.pcolormesh(carbon_test.lon, carbon_test.lat,
carbon_test.xco2[time_index,:,:],
cmap='viridis_r', transform=ccrs.PlateCarree())
# Add gridlines and labels for latitude and longitude
gl = ax.gridlines(draw_labels=True, linestyle='--', alpha= 1.0 )
gl.top_labels = False
gl.right_labels = False
gl.xlines = True
gl.xformatter = LONGITUDE_FORMATTER
gl.yformatter = LATITUDE_FORMATTER
# Add colorbar and labels
plt.colorbar(img, label='CO2 levels',
orientation='vertical',location = 'left', pad=0.05)
plt.title(f'Time index: {time_index}')
plt.show()
# Create integer slider widget to select a time index
slider = widgets.IntSlider(min=0, max=len(carbon_test.xco2)-1,
step=1, value=0, description='Time index')
# Use the interact function to link the time index slider with the plot_co2 function
widgets.interact(plot_co2, time_index=slider)
<function __main__.plot_co2(time_index)>
AQI Daily Oregon#
# read in AQI data
dailyAQI_1990 = pd.read_csv("Files/daily summary aqi_1990.csv")
# Filter the daily AQI data to only include data for Oregon
AQI = dailyAQI_1990[dailyAQI_1990["State Name"] == "Oregon"][["AQI", "Latitude", "Longitude"]]
AQI
| AQI | Latitude | Longitude | |
|---|---|---|---|
| 88352 | 33 | 45.496641 | -122.602877 |
| 88353 | 61 | 45.496641 | -122.602877 |
| 88354 | 42 | 45.496641 | -122.602877 |
| 88355 | 14 | 45.496641 | -122.602877 |
| 88356 | 20 | 45.496641 | -122.602877 |
| ... | ... | ... | ... |
| 88412 | 55 | 45.496641 | -122.602877 |
| 88413 | 41 | 45.496641 | -122.602877 |
| 88414 | 34 | 45.496641 | -122.602877 |
| 88415 | 57 | 45.496641 | -122.602877 |
| 88416 | 34 | 45.496641 | -122.602877 |
65 rows × 3 columns
# vmin = AQI["AQI"].min()
# vmax = AQI["AQI"].max()
# Reshape the DataFrame so that each time index has its own column
AQI_reshaped = AQI.pivot_table(index=["Latitude", "Longitude"], columns=AQI.groupby(["Latitude", "Longitude"]).cumcount(), values="AQI")
AQI_reshaped.reset_index(inplace= True)
import geopandas as gpd
from shapely import wkt
# update AQI data to be specific to county
AQI_counties_csv = pd.read_csv("Files/daily_aqi_by_county_2021.csv")
print(AQI_counties_csv.head())
State Name county Name State Code County Code Date AQI Category \
0 Alabama Baldwin 1 3 1/1/2021 27 Good
1 Alabama Baldwin 1 3 1/7/2021 24 Good
2 Alabama Baldwin 1 3 1/13/2021 46 Good
3 Alabama Baldwin 1 3 1/16/2021 21 Good
4 Alabama Baldwin 1 3 1/19/2021 52 Moderate
Defining Parameter Defining Site Number of Sites Reporting
0 PM2.5 01-003-0010 1
1 PM2.5 01-003-0010 1
2 PM2.5 01-003-0010 1
3 PM2.5 01-003-0010 1
4 PM2.5 01-003-0010 1
# read in shapefile for oregon county geometries
shapefile_path = "Files/tl_2022_41_cousub.shp"
counties_geometries = gpd.read_file(shapefile_path)
import us
from uszipcode import SearchEngine
C:\Users\dylan\anaconda3\lib\site-packages\fuzzywuzzy\fuzz.py:11: UserWarning: Using slow pure-python SequenceMatcher. Install python-Levenshtein to remove this warning
warnings.warn('Using slow pure-python SequenceMatcher. Install python-Levenshtein to remove this warning')
print(counties_geometries.head())
STATEFP COUNTYFP COUSUBFP COUSUBNS GEOID NAME \
0 41 055 91989 01938065 4105591989 Moro
1 41 055 93434 01938150 4105593434 Wasco
2 41 067 90289 01937965 4106790289 Beaverton-Hillsboro
3 41 067 91156 01938016 4106791156 Forest Grove-Cornelius
4 41 067 92678 01938124 4106792678 Rockcreek
NAMELSAD LSAD CLASSFP MTFCC CNECTAFP NECTAFP \
0 Moro CCD 22 Z5 G4040 NaN NaN
1 Wasco CCD 22 Z5 G4040 NaN NaN
2 Beaverton-Hillsboro CCD 22 Z5 G4040 NaN NaN
3 Forest Grove-Cornelius CCD 22 Z5 G4040 NaN NaN
4 Rockcreek CCD 22 Z5 G4040 NaN NaN
NCTADVFP FUNCSTAT ALAND AWATER INTPTLAT INTPTLON \
0 NaN S 1365640888 5537072 +45.2962888 -120.7128501
1 NaN S 767510742 14080400 +45.5880464 -120.6499207
2 NaN S 429103183 95480 +45.4451663 -122.8650420
3 NaN S 185568836 415233 +45.5535419 -123.0976146
4 NaN S 51685604 0 +45.5550132 -122.8630169
geometry
0 POLYGON ((-121.03065 45.28632, -121.03026 45.2...
1 POLYGON ((-120.91585 45.64120, -120.91361 45.6...
2 POLYGON ((-123.01182 45.52060, -123.01172 45.5...
3 POLYGON ((-123.24475 45.61310, -123.24433 45.6...
4 POLYGON ((-122.90848 45.59244, -122.90843 45.5...
# Add a new column 'FIPS' to the AQI_counties_csv DataFrame by combining the values of 'State Code' and 'County Code'
# Convert 'State Code' and 'County Code' to string type and use the zfill() method to zero-pad them to 2 and 3 characters respectively
# Concatenate the zero-padded values of 'State Code' and 'County Code' and assign the result to the 'FIPS' column
AQI_counties_csv['FIPS'] = AQI_counties_csv['State Code'].astype(str).str.zfill(2) + AQI_counties_csv['County Code'].astype(str).str.zfill(3)
# Print updated dataframe
AQI_counties_csv
| State Name | county Name | State Code | County Code | Date | AQI | Category | Defining Parameter | Defining Site | Number of Sites Reporting | FIPS | |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | Alabama | Baldwin | 1 | 3 | 1/1/2021 | 27 | Good | PM2.5 | 01-003-0010 | 1 | 01003 |
| 1 | Alabama | Baldwin | 1 | 3 | 1/7/2021 | 24 | Good | PM2.5 | 01-003-0010 | 1 | 01003 |
| 2 | Alabama | Baldwin | 1 | 3 | 1/13/2021 | 46 | Good | PM2.5 | 01-003-0010 | 1 | 01003 |
| 3 | Alabama | Baldwin | 1 | 3 | 1/16/2021 | 21 | Good | PM2.5 | 01-003-0010 | 1 | 01003 |
| 4 | Alabama | Baldwin | 1 | 3 | 1/19/2021 | 52 | Moderate | PM2.5 | 01-003-0010 | 1 | 01003 |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 325883 | Wyoming | Weston | 56 | 45 | 12/27/2021 | 34 | Good | Ozone | 56-045-0003 | 1 | 56045 |
| 325884 | Wyoming | Weston | 56 | 45 | 12/28/2021 | 35 | Good | Ozone | 56-045-0003 | 1 | 56045 |
| 325885 | Wyoming | Weston | 56 | 45 | 12/29/2021 | 34 | Good | Ozone | 56-045-0003 | 1 | 56045 |
| 325886 | Wyoming | Weston | 56 | 45 | 12/30/2021 | 36 | Good | Ozone | 56-045-0003 | 1 | 56045 |
| 325887 | Wyoming | Weston | 56 | 45 | 12/31/2021 | 31 | Good | Ozone | 56-045-0003 | 1 | 56045 |
325888 rows × 11 columns
# adding state and county fp data to the geometries
counties_geometries['FIPS'] = counties_geometries['STATEFP'] + counties_geometries['COUNTYFP']
# merging AQI and county geometry data
merged_data = pd.merge(AQI_counties_csv, counties_geometries, on='FIPS', how='left')
# Only selecting data from Oregon
oregon_data = merged_data[merged_data['State Name'] == 'Oregon']
# Columns I will use for plotting AQI data per county
AQI_columns = ['AQI', 'County Code', 'Defining Site']
# showing merged data frame
oregon_data
| State Name | county Name | State Code | County Code | Date | AQI | Category | Defining Parameter | Defining Site | Number of Sites Reporting | ... | MTFCC | CNECTAFP | NECTAFP | NCTADVFP | FUNCSTAT | ALAND | AWATER | INTPTLAT | INTPTLON | geometry | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 223952 | Oregon | Baker | 41 | 1 | 1/1/2021 | 43 | Good | PM2.5 | 41-001-0004 | 1 | ... | G4040 | NaN | NaN | NaN | S | 9.740701e+08 | 11647334.0 | +44.9374082 | -117.0478314 | POLYGON ((-117.36917 44.98065, -117.36906 44.9... |
| 223953 | Oregon | Baker | 41 | 1 | 1/1/2021 | 43 | Good | PM2.5 | 41-001-0004 | 1 | ... | G4040 | NaN | NaN | NaN | S | 2.205985e+09 | 13837275.0 | +44.5468040 | -118.1781784 | POLYGON ((-118.51947 44.70561, -118.51944 44.7... |
| 223954 | Oregon | Baker | 41 | 1 | 1/1/2021 | 43 | Good | PM2.5 | 41-001-0004 | 1 | ... | G4040 | NaN | NaN | NaN | S | 1.473729e+09 | 2188860.0 | +44.7575234 | -117.7081982 | POLYGON ((-117.97765 44.96921, -117.97762 44.9... |
| 223955 | Oregon | Baker | 41 | 1 | 1/1/2021 | 43 | Good | PM2.5 | 41-001-0004 | 1 | ... | G4040 | NaN | NaN | NaN | S | 8.002027e+08 | 4526019.0 | +44.4345000 | -117.4547032 | POLYGON ((-117.75571 44.47201, -117.75563 44.4... |
| 223956 | Oregon | Baker | 41 | 1 | 1/1/2021 | 43 | Good | PM2.5 | 41-001-0004 | 1 | ... | G4040 | NaN | NaN | NaN | S | 1.822597e+09 | 18981387.0 | +44.7469353 | -117.3429909 | POLYGON ((-117.77750 44.99216, -117.77739 44.9... |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 277847 | Oregon | Washington | 41 | 67 | 12/31/2021 | 40 | Good | PM2.5 | 41-067-0004 | 3 | ... | G4040 | NaN | NaN | NaN | S | 1.855688e+08 | 415233.0 | +45.5535419 | -123.0976146 | POLYGON ((-123.24475 45.61310, -123.24433 45.6... |
| 277848 | Oregon | Washington | 41 | 67 | 12/31/2021 | 40 | Good | PM2.5 | 41-067-0004 | 3 | ... | G4040 | NaN | NaN | NaN | S | 5.168560e+07 | 0.0 | +45.5550132 | -122.8630169 | POLYGON ((-122.90848 45.59244, -122.90843 45.5... |
| 277849 | Oregon | Washington | 41 | 67 | 12/31/2021 | 40 | Good | PM2.5 | 41-067-0004 | 3 | ... | G4040 | NaN | NaN | NaN | S | 8.403432e+08 | 5222076.0 | +45.6096278 | -123.2586950 | POLYGON ((-123.48606 45.43361, -123.48584 45.4... |
| 277850 | Oregon | Washington | 41 | 67 | 12/31/2021 | 40 | Good | PM2.5 | 41-067-0004 | 3 | ... | G4040 | NaN | NaN | NaN | S | 1.499494e+08 | 343133.0 | +45.4478423 | -123.0495848 | POLYGON ((-123.20927 45.43371, -123.20836 45.4... |
| 277851 | Oregon | Washington | 41 | 67 | 12/31/2021 | 40 | Good | PM2.5 | 41-067-0004 | 3 | ... | G4040 | NaN | NaN | NaN | S | 2.192054e+08 | 42264.0 | +45.6893915 | -123.0130347 | POLYGON ((-123.12754 45.76942, -123.12741 45.7... |
53900 rows × 30 columns
# created gpd data frame of merged data frame
oregon_geo = gpd.GeoDataFrame(oregon_data, geometry='geometry', crs='epsg:4326')
# redefining AQI to be more current
AQI = oregon_data[AQI_columns]
AQI
| AQI | County Code | Defining Site | |
|---|---|---|---|
| 223952 | 43 | 1 | 41-001-0004 |
| 223953 | 43 | 1 | 41-001-0004 |
| 223954 | 43 | 1 | 41-001-0004 |
| 223955 | 43 | 1 | 41-001-0004 |
| 223956 | 43 | 1 | 41-001-0004 |
| ... | ... | ... | ... |
| 277847 | 40 | 67 | 41-067-0004 |
| 277848 | 40 | 67 | 41-067-0004 |
| 277849 | 40 | 67 | 41-067-0004 |
| 277850 | 40 | 67 | 41-067-0004 |
| 277851 | 40 | 67 | 41-067-0004 |
53900 rows × 3 columns
# Plotting function to visualize Air Quality Index (AQI) in Oregon
def plot_data4(time_index):
# Create figure
fig = plt.figure(figsize=(12, 6))
# Create axis with Plate Carree projection
ax = plt.subplots(1, 1, projection = ccrs.PlateCarree())
# Get the name of the column in the reshaped DataFrame for the given time index
col_name = oregon_geo.columns[time_index + 2] # Add 2 to skip the 'geometry' and 'index' columns
# Add state boundaries to the plot
ax.add_feature(states, edgecolor = 'black')
# Set the extent of the plot to cover the entire globe
ax.set_extent((min_longitude, max_longitude,
min_latitude, max_latitude), crs=ccrs.PlateCarree())
# Plot the AQI values from the reshaped DataFrame with appropriate latitude and longitude coordinates
img = ax.scatter(AQI["Longitude"], AQI_reshaped["Latitude"],
c=AQI_reshaped[time_index],
cmap="viridis_r", vmin=AQI["AQI"].min(), vmax=AQI["AQI"].max(),
transform=ccrs.PlateCarree())
# Plot the GeoDataFrame with the given column name
oregon_geo.plot(column=col_name, cmap='viridis_r',
linewidth=0.8, ax=ax, edgecolor='0.8', legend=True)
# Set the plot title
plt.title('Air Quality Index in Oregon')
# Draw and display the plot
plt.draw()
plt.pause(0.01)
# Read state boundaries shapefile and store it in a GeoDataFrame
state_boundaries = gpd.read_file('Files/ne_50m_admin_1_states_provinces.shp')
# Preview first 5 rows of GeoDataFrame
state_boundaries.head()
| featurecla | scalerank | adm1_code | diss_me | iso_3166_2 | wikipedia | iso_a2 | adm0_sr | name | name_alt | ... | FCLASS_ID | FCLASS_PL | FCLASS_GR | FCLASS_IT | FCLASS_NL | FCLASS_SE | FCLASS_BD | FCLASS_UA | FCLASS_TLC | geometry | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 0 | Admin-1 scale rank | 2 | AUS-2651 | 2651 | AU-WA | NaN | AU | 6 | Western Australia | NaN | ... | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | MULTIPOLYGON (((113.13181 -25.95199, 113.14823... |
| 1 | Admin-1 scale rank | 2 | AUS-2650 | 2650 | AU-NT | NaN | AU | 6 | Northern Territory | NaN | ... | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | MULTIPOLYGON (((129.00196 -25.99901, 129.00196... |
| 2 | Admin-1 scale rank | 2 | AUS-2655 | 2655 | AU-SA | NaN | AU | 3 | South Australia | NaN | ... | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | MULTIPOLYGON (((129.00196 -31.69266, 129.00196... |
| 3 | Admin-1 scale rank | 2 | AUS-2657 | 2657 | AU-QLD | NaN | AU | 5 | Queensland | NaN | ... | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | MULTIPOLYGON (((138.00196 -25.99901, 138.00174... |
| 4 | Admin-1 scale rank | 2 | AUS-2660 | 2660 | AU-TAS | NaN | AU | 5 | Tasmania | NaN | ... | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | NaN | MULTIPOLYGON (((147.31246 -43.28038, 147.34238... |
5 rows × 122 columns
# Filter the state boundaries dataframe to only include the state of Oregon
oregon_boundary = state_boundaries[state_boundaries['iso_3166_2'].str.startswith("US-OR")]
def plot_oregonAQI(time_index):
# Initialize figure with 1 subplot
fig, ax = plt.subplots(1, 1, figsize=(6, 3))
# Plot the AQI values for the specific time index using pivoted and filtered data.
oregon_geo_pivoted_new[oregon_geo_pivoted_new['time_index'] == time_index].plot(column='AQI', cmap='viridis_r',
linewidth=0.8, ax=ax, edgecolor='0.8', legend=True, vmin=vmin, vmax=vmax)
# Add the Oregon state boundary to the plot.
oregon_boundary.plot(ax=ax, color='none', edgecolor='black', linewidth=0.8)
# Set the title of the plot to include the date of the AQI data.
plt.title(f"Oregon Air Quality Index on {oregon_geo_pivoted_new[oregon_geo_pivoted_new['time_index'] == time_index]['Date'].iloc[0].strftime('%Y-%m-%d')}")
# Draw the plot and pause for a short time to allow it to be displayed.
plt.draw()
plt.pause(0.01)
# updated oregon_geo dataframe
oregon_geo
| State Name | county Name | State Code | County Code | Date | AQI | Category | Defining Parameter | Defining Site | Number of Sites Reporting | ... | MTFCC | CNECTAFP | NECTAFP | NCTADVFP | FUNCSTAT | ALAND | AWATER | INTPTLAT | INTPTLON | geometry | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 223952 | Oregon | Baker | 41 | 1 | 1/1/2021 | 43 | Good | PM2.5 | 41-001-0004 | 1 | ... | G4040 | NaN | NaN | NaN | S | 9.740701e+08 | 11647334.0 | +44.9374082 | -117.0478314 | POLYGON ((-117.36917 44.98065, -117.36906 44.9... |
| 223953 | Oregon | Baker | 41 | 1 | 1/1/2021 | 43 | Good | PM2.5 | 41-001-0004 | 1 | ... | G4040 | NaN | NaN | NaN | S | 2.205985e+09 | 13837275.0 | +44.5468040 | -118.1781784 | POLYGON ((-118.51947 44.70561, -118.51944 44.7... |
| 223954 | Oregon | Baker | 41 | 1 | 1/1/2021 | 43 | Good | PM2.5 | 41-001-0004 | 1 | ... | G4040 | NaN | NaN | NaN | S | 1.473729e+09 | 2188860.0 | +44.7575234 | -117.7081982 | POLYGON ((-117.97765 44.96921, -117.97762 44.9... |
| 223955 | Oregon | Baker | 41 | 1 | 1/1/2021 | 43 | Good | PM2.5 | 41-001-0004 | 1 | ... | G4040 | NaN | NaN | NaN | S | 8.002027e+08 | 4526019.0 | +44.4345000 | -117.4547032 | POLYGON ((-117.75571 44.47201, -117.75563 44.4... |
| 223956 | Oregon | Baker | 41 | 1 | 1/1/2021 | 43 | Good | PM2.5 | 41-001-0004 | 1 | ... | G4040 | NaN | NaN | NaN | S | 1.822597e+09 | 18981387.0 | +44.7469353 | -117.3429909 | POLYGON ((-117.77750 44.99216, -117.77739 44.9... |
| ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... | ... |
| 277847 | Oregon | Washington | 41 | 67 | 12/31/2021 | 40 | Good | PM2.5 | 41-067-0004 | 3 | ... | G4040 | NaN | NaN | NaN | S | 1.855688e+08 | 415233.0 | +45.5535419 | -123.0976146 | POLYGON ((-123.24475 45.61310, -123.24433 45.6... |
| 277848 | Oregon | Washington | 41 | 67 | 12/31/2021 | 40 | Good | PM2.5 | 41-067-0004 | 3 | ... | G4040 | NaN | NaN | NaN | S | 5.168560e+07 | 0.0 | +45.5550132 | -122.8630169 | POLYGON ((-122.90848 45.59244, -122.90843 45.5... |
| 277849 | Oregon | Washington | 41 | 67 | 12/31/2021 | 40 | Good | PM2.5 | 41-067-0004 | 3 | ... | G4040 | NaN | NaN | NaN | S | 8.403432e+08 | 5222076.0 | +45.6096278 | -123.2586950 | POLYGON ((-123.48606 45.43361, -123.48584 45.4... |
| 277850 | Oregon | Washington | 41 | 67 | 12/31/2021 | 40 | Good | PM2.5 | 41-067-0004 | 3 | ... | G4040 | NaN | NaN | NaN | S | 1.499494e+08 | 343133.0 | +45.4478423 | -123.0495848 | POLYGON ((-123.20927 45.43371, -123.20836 45.4... |
| 277851 | Oregon | Washington | 41 | 67 | 12/31/2021 | 40 | Good | PM2.5 | 41-067-0004 | 3 | ... | G4040 | NaN | NaN | NaN | S | 2.192054e+08 | 42264.0 | +45.6893915 | -123.0130347 | POLYGON ((-123.12754 45.76942, -123.12741 45.7... |
53900 rows × 30 columns
# Function that pivots a dataframe with AQI data for the state of Oregon
def pivot_oregon_geo(df):
# Filter the columns we want to keep
# Keep 'geometry', 'FIPS', 'AQI', and 'Date' columns
columns_to_keep = ['geometry', 'FIPS', 'AQI', 'Date']
df_filtered = df[columns_to_keep]
# Return the filtered dataframe
return df_filtered
# print(oregon_geo.columns)
# oregon_geo.Date
# pivoted dataframe
oregon_geo_pivoted = pivot_oregon_geo(oregon_geo)
# Convert the 'Date' column to datetime format
oregon_geo_pivoted['Date'] = pd.to_datetime(oregon_geo_pivoted['Date'])
# Create a new DataFrame as a copy of the original
oregon_geo_pivoted_new = oregon_geo_pivoted.copy()
vmin = oregon_geo_pivoted_new['AQI'].min()
vmax = oregon_geo_pivoted_new['AQI'].max()
# Create the 'time_index' column in the new DataFrame
min_date = oregon_geo_pivoted_new['Date'].min()
oregon_geo_pivoted_new['time_index'] = (oregon_geo_pivoted_new['Date'] - min_date).dt.days
C:\Users\dylan\anaconda3\lib\site-packages\geopandas\geodataframe.py:1443: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame.
Try using .loc[row_indexer,col_indexer] = value instead
See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
super().__setitem__(key, value)
AQI plotted with time slider#
# Creates an IntSlider widget with a range from 0 to the maximum value of the 'time_index' column in the pivoted DataFrame
slider = widgets.IntSlider(min=0, max=oregon_geo_pivoted_new['time_index'].max(),
step=1, value=0)
# Widget used to plot the 'plot_oregonAQI' function with a time slider
widgets.interact(plot_oregonAQI, time_index=slider)
<function __main__.plot_oregonAQI(time_index)>
